Flow marks are visible bands, rings, or waves created when the advancing polymer front does not reproduce the mold surface uniformly.
The defect is usually associated with unstable flow-front velocity, premature skin formation, abrupt changes in section or gate geometry, or a mismatch among resin temperature, mold temperature, and filling profile.
Effective troubleshooting starts by identifying the mark correctly. Flow marks, jetting, weld lines, splay, blush, and gloss variation may look similar, but they do not share one universal correction.
Often follow the flow path or radiate from the gate.
Confirm actual melt, mold, and fill behavior before changing tooling.
Silver streaks and worm tracks usually require a different remedy.
The Physics of Flow Marks
Molten polymer does not move through a cavity as a solid plug. The hotter material travels through the core of the flow channel, turns outward at the advancing front, and contacts the colder mold surface. This characteristic motion is known as fountain flow.
Fountain Flow Behavior
Lower-viscosity material travels through the center of the flow path.
The advancing front rolls toward the cavity surface.
Heat transfers into the tool and the surface layer begins to freeze.
Hesitation or nonuniform cooling leaves bands in gloss, texture, or orientation.
If the front slows substantially or the skin freezes too early, later material can advance over or distort the partially frozen layer. The result may appear as alternating gloss bands, rings, or ripples rather than a uniformly replicated surface.
Stick-Slip and Flow-Front Instability
“Stick-slip” is a useful descriptive model for some flow-mark patterns. A surface layer temporarily adheres or freezes against the mold, pressure builds behind it, and the advancing material then moves again. Repeated hesitation can leave periodic bands.
However, not every flow mark is caused by literal rupture of a frozen skin. Viscoelastic behavior, shear-rate changes, gate blush, section transitions, resin additives, and mold-surface replication can produce similar visual effects. Diagnosis should therefore rely on pattern, location, process data, and controlled trials.
Flow Marks vs. Weld Lines, Jetting, and Splay
| Defect | Typical Appearance | Diagnostic Clue | Common Mechanism |
|---|---|---|---|
| Flow marks | Waves, rings, or bands following the flow path | Often change with mold temperature or velocity profile | Unstable front, early skinning, or section/gate transition |
| Weld lines | Fine line where separate fronts reunite | Tracks around holes, pins, or multiple gates | Insufficient fusion of converging fronts |
| Jetting | Snake-like or rope-shaped trace | Common opposite a restrictive gate entering open space | Free melt jet fails to establish fountain flow |
| Splay | Silver streaks in the flow direction | Investigate moisture, volatiles, air, or degradation first | Gas or vapor disturbed the polymer surface |
Fast distinction: A wave pattern near a gate may be a flow mark or gate blush. A silver streak is more often splay. A continuous line where two fronts meet is more likely a weld line.

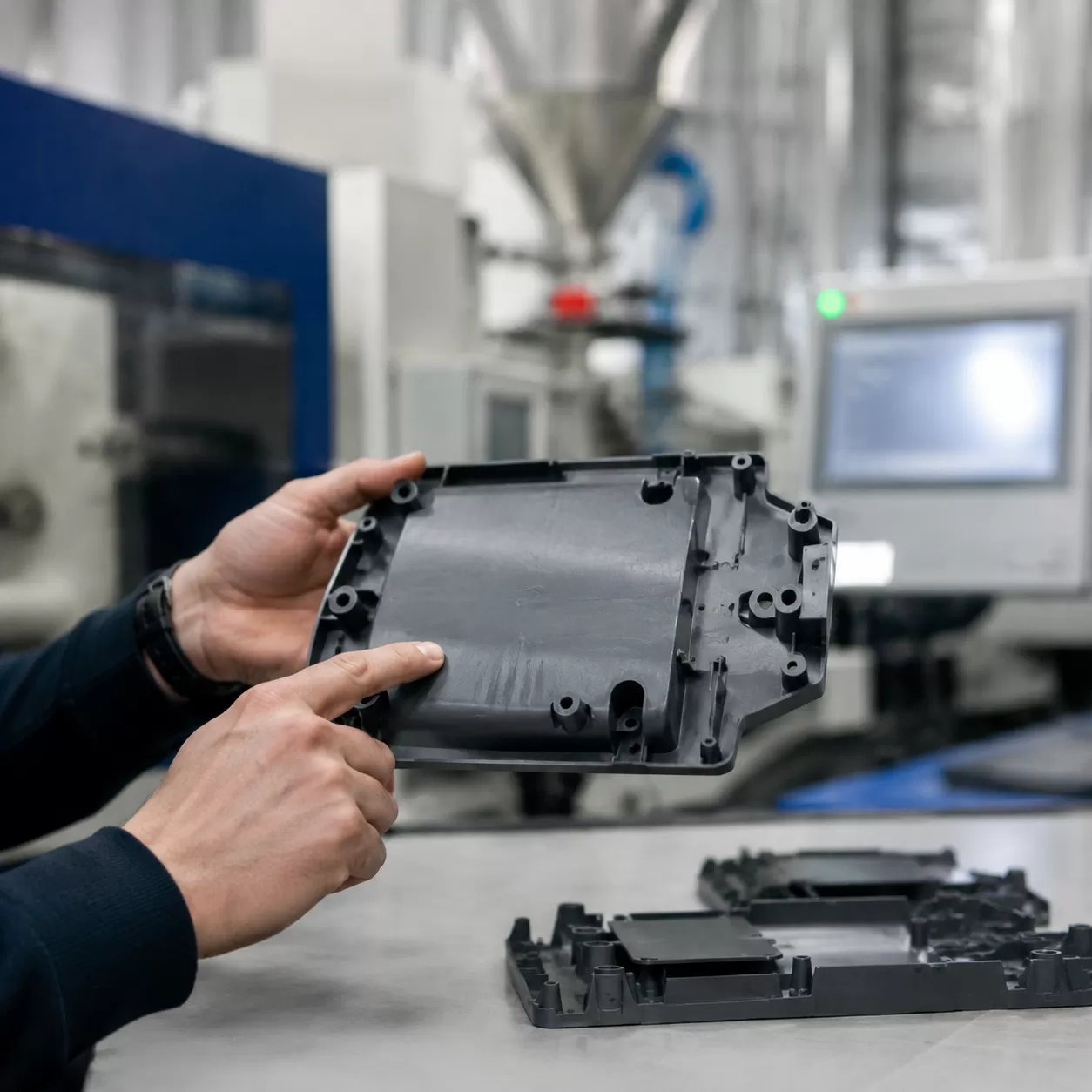

Root Causes and Machine-Parameter Corrections
Machine adjustments are normally the first troubleshooting layer because they can confirm whether the defect is process-sensitive before a mold modification is considered. Record the baseline cycle and change one controlled factor at a time.
Melt and Mold Temperature
Low melt temperature raises viscosity. A cold cavity surface accelerates skin formation and can prevent uniform texture or gloss replication.
Trial: Increase temperatures within the resin supplier’s approved processing window and verify actual tool-water and cavity-surface conditions.
Injection Velocity
A front that hesitates can cool prematurely. Excessive speed through a small gate can instead create jetting, blush, burn, or high shear.
Trial: Use staged velocity to establish the front at the gate and maintain a stable volumetric flow through section changes.
Transfer and Packing
An early velocity-to-pressure transfer can slow the front before the cavity is volumetrically filled. Packing primarily controls shrinkage after fill.
Trial: Confirm fill percentage at transfer, cushion repeatability, gate seal, and cavity-pressure response.
Random Pressure Increases
More pressure may mask one symptom while causing flash, molded-in stress, overpacking, or dimensional change.
Trial: Correct velocity, temperature, and transfer behavior before treating peak pressure as the primary remedy.
Melt and Mold Temperature
Raise temperature only within the approved resin and tooling limits. Excessive melt temperature can degrade the polymer, increase cycle time, generate volatiles, or change color. Excessive mold temperature may increase sticking or cooling time even when it improves surface replication.
Velocity Profile and Filling Pressure
The target is not simply “fast.” The target is a stable front velocity appropriate to the gate, wall thickness, resin viscosity, and cavity geometry. A slower gate-entry segment can help prevent jetting, followed by a higher speed through the main cavity. Pressure must remain available to achieve the commanded velocity without exceeding machine, mold, or part limits.
Holding Pressure and Gate Seal
Holding pressure cannot normally erase a flow mark created during early filling after the surface has frozen. It can, however, influence gate-area gloss, sink, shrinkage, and contact with the cavity wall. Packing trials should be based on part weight, cavity pressure, dimensional response, and gate-seal time rather than indiscriminate increases.
Process discipline: Confirm barrel-temperature accuracy, residence time, recovery consistency, cushion, check-ring performance, and water-circuit balance before concluding that the mold geometry is defective.

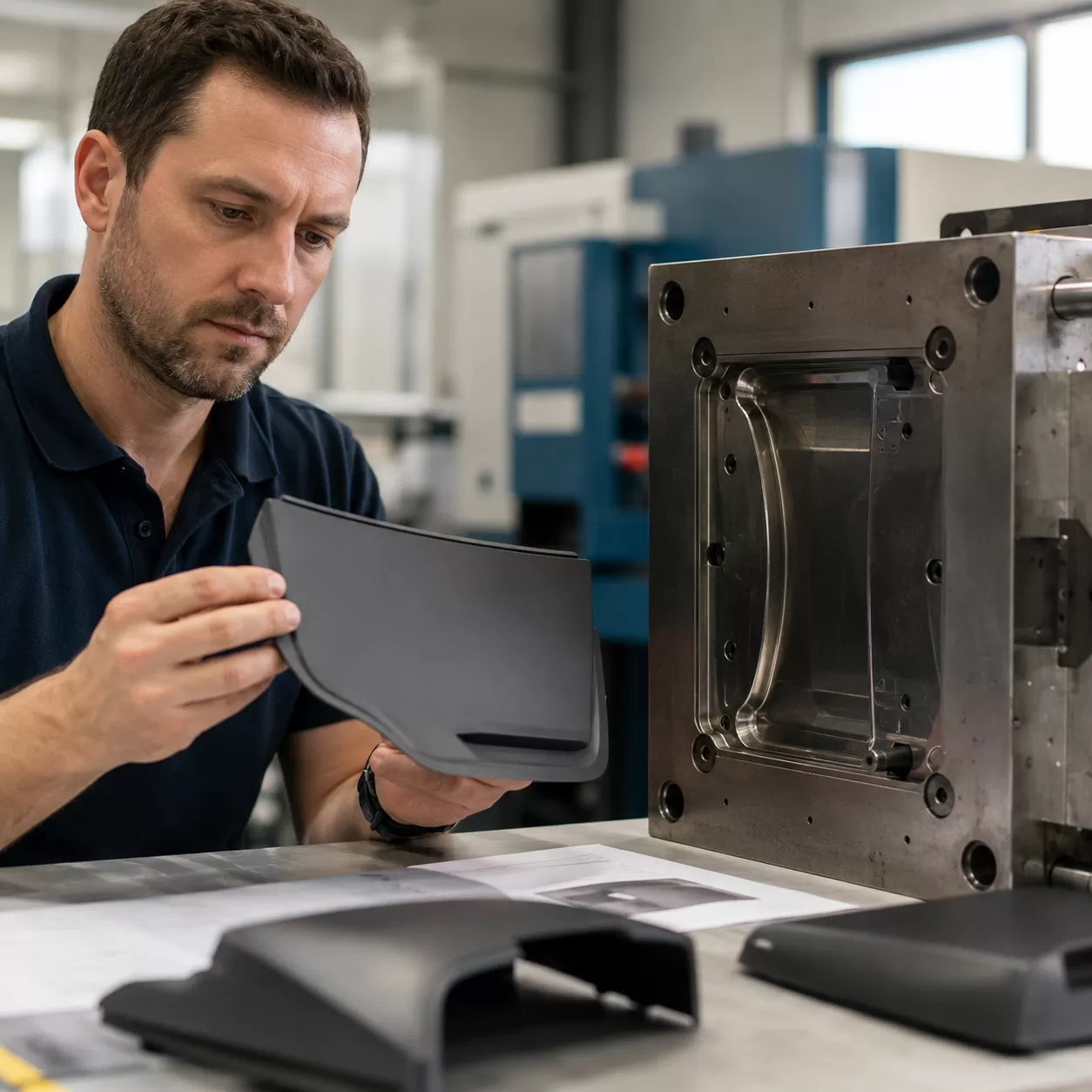

Tooling and Mold-Design Corrections
If a defect remains across a reasonable processing window, review the gate, runner, cavity thickness, cooling circuit, venting, and surface condition. Precision mold core and complex cavity components help preserve those features through high-volume service.
Gate Location and Geometry
- Reduce abrupt expansion: A small gate discharging into a broad open cavity can create jetting or unstable surface orientation.
- Support thick-to-thin filling where practical: This can improve pressure transmission, but gate location must also consider weld lines, appearance, fiber orientation, warpage, and gate removal.
- Use fan, tab, film, or other spreading gates when appropriate: These can distribute the flow and reduce localized shear or gate blush.
- Check gate freeze: A gate that freezes too early limits packing and narrows the stable process window.
Cold-Slug Control
A cold-slug well can capture relatively cool material from the nozzle tip or runner front before it reaches the cosmetic cavity surface. Its location and volume should be based on sprue and runner layout. Cold-slug capture is not a substitute for correcting excessive nozzle cooling, drool control, or poor thermal balance.
Runner Balance, Venting, and Cooling
Multi-cavity molds should be evaluated for rheological balance, not only equal runner length. Each cavity should experience comparable pressure loss and fill timing. Cooling circuits should also avoid large surface-temperature differences that reproduce as gloss bands.
Venting must let displaced air and gases escape without permitting flash. Vent depth is highly resin-specific and depends on viscosity, pressure, land length, mold condition, and parting-line support. Vents should be designed from validated material guidance, not described simply as “deep.”
Tool Surface and Wear
Gate wear, deposits, corrosion, damaged texture, and uneven polishing can create or amplify cosmetic variation. HXCNC supports tooling through tool and mold steel machining, precision grinding, and controlled surface polishing.
Material Selection and Preparation
Before changing resin grade, confirm that the current resin is correctly identified, dried, handled, and processed. Lot changes, regrind percentage, color concentrate, additives, and contamination can alter viscosity and surface appearance.
Moisture and Volatiles
Polycarbonate, nylon, PET, PBT, TPU, and other hygroscopic materials require controlled drying. ABS can also produce splay when moisture or volatiles are present, though its drying sensitivity differs from nylon or PC. Excessive drying can be harmful for some resins, so time, temperature, dew point, and allowable residence must follow supplier data.
Silver streaks should trigger a moisture and degradation investigation before they are labeled as flow marks. Similar material-handling considerations also apply when manufacturing ABS, PC, and PMMA machined parts.
Viscosity and Melt Flow Rate
Melt flow rate is a quality-control index measured under specified conditions; it is not a complete description of injection-molding viscosity across all shear rates. A higher-flow grade may fill a thin cavity more easily, but it can also change mechanical properties, shrinkage, flash tendency, and qualification status.
| Material Observation | Likely Effect | Verification | Controlled Response |
|---|---|---|---|
| Moisture or volatiles | Splay, bubbles, degradation, or surface streaks | Moisture test, dryer dew point, purge inspection | Dry to supplier specification and eliminate contamination |
| High apparent viscosity | Pressure loss, hesitation, early freeze | Short-shot study and pressure/velocity data | Optimize temperature, flow rate, gate, or approved grade |
| Very high-flow grade | Easier fill but increased flash or property tradeoffs | Material qualification and dimensional trial | Rebalance speed, clamp, packing, and gate seal |
| Inconsistent regrind or additive level | Variable viscosity, color, gloss, or degradation | Lot traceability and controlled blend trial | Stabilize formulation and handling procedure |
Flow-Mark Troubleshooting Matrix
The table below is a diagnostic starting point. Confirm each suspected cause through a controlled change rather than applying every remedy simultaneously.
| Observation | Check First | Controlled Trial | Watch For |
|---|---|---|---|
| Waves or rings near gate | Gate transition, cold slug, gate blush, mold temperature | Stage gate-entry speed; verify nozzle and tool temperature | Jetting, shear burn, longer cooling time |
| Dull bands downstream | Flow-front hesitation or cooling imbalance | Run a short-shot sequence and adjust velocity by position | Flash or trapped gas at higher speed |
| Repeated ring pattern | Stick-slip behavior, wall temperature, section transition | Raise mold temperature within limits and stabilize flow rate | Cycle-time and ejection changes |
| Gloss change at gate | Shear, gate geometry, orientation, pressure transition | Reduce initial speed or spread flow with gate modification | Short shot or visible weld-line relocation |
| Silver streaks | Moisture, air, volatiles, or degradation | Verify drying and purge condition before changing mold design | Over-drying or excessive melt temperature |
Recommended Shop-Floor Test Order
Classify the mark. Record location, direction, gloss, texture, cavity number, and whether it follows the flow path.
Lock the baseline. Save temperatures, fill time, transfer position, peak pressure, cushion, screw recovery, cooling, and material lot.
Run short shots. Observe where the front hesitates, jets, splits, or changes section.
Verify material condition. Confirm drying, contamination, regrind, residence time, and degradation.
Adjust one process family at a time. Test thermal conditions, then velocity profile and transfer, then packing where relevant.
Inspect the mold. Review gate wear, cold-slug wells, vents, cooling balance, deposits, and surface condition.
Validate the fix. Confirm multiple cycles, all cavities, dimensions, appearance, and the absence of new defects.
Precision Mold Components from HXCNC
A stable molding process depends on repeatable tool geometry. Worn gates, damaged shutoffs, nonuniform inserts, or poorly finished flow surfaces can narrow the process window and make cosmetic defects difficult to control.
HXCNC manufactures precision mold cores, cavities, inserts, slides, cams, and supporting tooling components through precision CNC machining. Inspection strategy can be aligned with gate dimensions, cavity profiles, sealing faces, and wear-critical features through HXCNC’s inspection capabilities.
Coatings and surface treatments should be selected for the actual tooling function. An e-coating service may suit certain downstream steel hardware, but it is not a default treatment for precision mold cavities or polymer-flow surfaces. Mold inserts may instead require polishing, texturing, hardening, nitriding, PVD coating, plating, or another validated treatment.
Frequently Asked Questions
Why do flow marks often appear near the gate?
The gate creates a sharp change in pressure, shear rate, flow area, and orientation. If the melt exits a small gate into a much larger cavity, the front may jet or become unstable. Cold material, low mold temperature, or an aggressive velocity transition can make the mark more visible.
Can changing resin grade eliminate flow marks?
Sometimes. An approved grade with a more suitable rheological profile may fill the cavity more uniformly. The change must still be qualified for strength, shrinkage, appearance, chemical resistance, regulatory requirements, and dimensional performance. A new resin should not be used to conceal a damaged gate or unbalanced cooling system.
How does a staged injection-speed profile help?
Position-based speed stages can slow the melt through a restrictive gate, accelerate it through a broad thin section, and reduce it again near end-of-fill or a sensitive vent. The goal is a stable flow-front velocity, not one constant screw speed throughout the entire cavity.
Are flow marks only cosmetic?
Many are primarily cosmetic, but the underlying cause may also indicate poor fusion, trapped gas, high molded-in stress, nonuniform orientation, or unstable processing. Parts used in pressure, sealing, optical, medical, or safety-critical applications should be evaluated beyond appearance alone.
