Product Category
DRN — 001 to 007
UAV & Drone
Precision Parts
7 precision machined product lines for multirotor, fixed-wing, and hybrid UAV platforms — motor mounts, gimbal brackets, arm connectors, propeller adapters, battery frames, flight controller plates, and frame skeleton structures. Every gram counts. Every dimension is held.
Motor Perpendicularity
≤0.01 mm
Motor face to arm axis — directly affects thrust vector alignment
Arm Bore Perpendicularity
≤0.01 mm
Arm socket to hub plane — determines hover balance
Mass Tolerance
±3%
All parts weighed vs design target — deviation triggers DFM review
Al7075-T6
503 MPa
Standard drone structural alloy — best strength-to-weight
7
Product Lines
Al7075 / TC4
Materials
≤0.01mm
Motor Perp.
±3%
Mass Verified
24hr
Quote Turnaround
UAV Motor Mounts ✦
Gimbal Brackets ✦
Arm Connector Seats ✦
Propeller Adapters ✦
Battery Mounting Frames ✦
Flight Controller Mounting Plates ✦
UAV Frame Skeleton Parts ✦
UAV Motor Mounts ✦
Gimbal Brackets ✦
Arm Connector Seats ✦
Propeller Adapters ✦
Battery Mounting Frames ✦
Flight Controller Mounting Plates ✦
UAV Frame Skeleton Parts ✦
Full Product Range
7 UAV & Drone
Precision Product Lines
Select a category tab · All parts CNC machined to drawing · MOQ 1 piece · Mass verified on every part
Product Categories
Propulsion & Motor Mounts
Quote →
UAV motor mounts and propeller adapters — the two propulsion interface parts where dimensional accuracy directly determines rotor performance. Motor mount face perpendicularity to arm axis ≤0.01 mm controls rotor thrust vector; propeller adapter concentricity ≤0.02 mm controls propeller imbalance. Both mass verified to ±3% of design target.
DRN-001
PROPULSION / 001 — FEATURED
UAV Motor Mounts
Brushless motor mounting seats for multirotor, fixed-wing pusher/tractor, and hybrid VTOL UAV propulsion systems. Motor face perpendicularity to arm axis ≤0.01 mm — directly determines rotor thrust vector alignment. Misalignment of even 0.5° generates lateral thrust component and hover bias that must be corrected by flight controller trimming at the cost of control authority and efficiency. Motor bolt-pattern position ±0.005 mm — machined in the same setup as the arm bore to maintain geometric relationship. Integral ESC cable management channel and heat-dissipation slot geometry machined from Al7075-T6 billet. Vibration-damper thread insert pattern (M3 or M4 steel inserts) for anti-vibration motor mounting. Mass verified — target weight ±3%. Hard anodize Type III standard.
Al7075-T6 · Al6061 · TC4 Ti
Get Quote
DRN-002
PROPULSION / 002

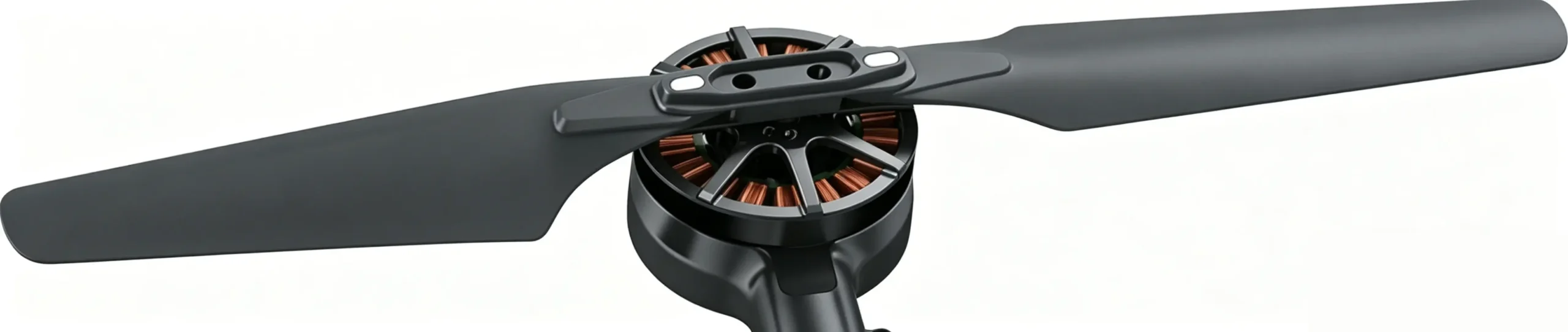

Propeller Adapters
CNC turned propeller shaft adapters for converting motor shaft diameter and key way geometry to propeller hub bore. Shaft bore concentricity ≤0.02 mm — out-of-round adapters introduce first-order propeller imbalance that generates 1P vibration at motor speed. Thread length and thread class verified for propeller retention under maximum thrust load. Available for 2mm, 3mm, 4mm, 5mm, and 6mm motor shafts.
Al7075 · Al6061 · SteelGet Quote
DRN-001B
PROPULSION / 001B
Folding Motor Arm Mounts
Combined motor mount and fold-hinge bodies for compact folding-arm UAVs. Hinge pivot bore H7; rotation stop geometry machined for precise deployed angle (90° or custom). Spring-loaded detent for reliable deployment locking. Motor mount face geometry same specification as DRN-001.
Al7075 · TC4 TiGet Quote
Materials: Al7075-T6 · Al6061-T6 · TC4 Ti-6Al-4V · Steel (inserts)
Request All 3 →
Arm Connectors & Frame Skeleton
Quote →
UAV arm connector hub bodies and frame skeleton structures — the primary load-bearing structural elements of the drone platform. Arm socket bore perpendicularity to hub plane ≤0.01 mm determines whether all motor thrust vectors are parallel. Skeleton frames machined as monolithic one-piece structures — replacing multi-part bolted or bonded assemblies and eliminating joint fatigue initiation sites. All parts lightweight-pocketed with FEA-guided geometry.
DRN-003
STRUCTURE / 003 — FEATURED
Arm Connector Seats
Central hub arm socket bodies for quick-fold and fixed-arm UAV frames. Arm bore perpendicularity to hub plane ≤0.01 mm — ensures all arm axes are coplanar, keeping all motor thrust vectors parallel for balanced lift without flight controller compensation. On a quad, even 0.5° arm tilt creates 0.87% lateral thrust imbalance per motor, requiring permanent control surface deflection. Rotational locking geometry and alignment detent machined integral — no separate locking pin assembly to lose or misalign. Clamp force calculated for specified arm tube OD and wall thickness. Compatible with carbon fibre, aluminium alloy, and titanium arm tubes. Mass verified ±3%. Available in fixed-arm and quick-fold configurations.
Al7075-T6 · Al6061 · TC4 Ti
Get Quote
DRN-004
STRUCTURE / 004
UAV Frame Skeleton Parts
Monolithic one-piece UAV central frame skeleton bodies machined from Al7075 billet — replacing multi-plate bolted frame assemblies. No joint loosening under vibration, no adhesive failure, no cumulative positional error across bolted joints. FEA-guided pocketing retains full stiffness while removing maximum mass. Mass target ±3% verified. CMM dimensional report with all mounting face positions verified.
Al7075-T6 · TC4 TiGet Quote
DRN-004B
STRUCTURE / 004B
Landing Gear Connectors
Landing leg attachment bodies and retractable gear pivot housings for fixed and folding UAV landing systems. Pivot bore H7; hinge axis parallelism ≤0.01 mm. Impact-load geometry — all transition radii ≥R1 mm to prevent stress concentration under hard landing load. Mass optimised — pocketed where structurally safe.
Al7075 · TC4 · Al6061Get Quote
Materials: Al7075-T6 · TC4 Ti-6Al-4V · Al6061
Request All 3 →
Payload & Gimbal Brackets
Quote →
UAV camera gimbal housing brackets and sensor payload mounting bodies — where motor axis coaxiality ≤0.005 mm determines smooth gimbal rotation without cogging, and where payload isolation mounting geometry determines how much drone vibration reaches the camera sensor. Thin-wall pocketed design minimises gimbal inertia for faster pan/tilt response.
DRN-005
PAYLOAD & GIMBAL / 005 — FEATURED
Gimbal Bracket Bodies
2-axis and 3-axis camera gimbal yoke and bracket bodies for cinema, survey, inspection, and thermal camera UAV payloads. Motor seat coaxiality ≤0.005 mm — eccentricity in the gimbal motor seat creates vibration that appears in video as micro-jitter at the motor cogging frequency, not filtered by the gimbal control loop. Thin-wall pocketed design — typical wall 1.2 mm in Al7075 — minimises gimbal inertia for faster transient response and lower motor current. Balance optimisation pocket geometry removes material from the heavy side to shift CG to gimbal rotation centre. Camera mounting face flatness ±0.01 mm. Vibration isolation damper mount pocket pattern for anti-vibration ball or rubber mount. Custom camera platform sizes (Sony, FLIR, Zenmuse, custom sensor modules).
Al7075-T6 · Al6061 · TC4 Ti
Get Quote
DRN-005B
PAYLOAD / 005B
Sensor Payload Mounts
LiDAR, multispectral, and custom sensor payload mounting brackets. Sensor datum face perpendicularity to UAV centerline ±0.1° for accurate georeferencing. Vibration isolation ball or rubber mount pockets machined integral. Cable management slot and quick-release retention latch boss integrated.
Al7075 · Al6061 · CF InsertGet Quote
DRN-005C
PAYLOAD / 005C
Quick-Release Payload Plates
Dovetail or latching quick-release payload change plates for multi-mission UAVs requiring rapid payload swap between sorties. Locating geometry repeatability ±0.2 mm for consistent sensor boresight after swap. Retention latch rated for 5× maximum payload weight in flight. Lightweight — pocketed Al7075.
Al7075 · Al6061Get Quote
Materials: Al7075-T6 · Al6061 · TC4 Ti · Carbon Fibre Insert
Request All 3 →
Avionics & Power Mounts
Quote →
Flight controller mounting plates and battery mounting frames — the avionics and power interface structures that support the drone's electronic brain and energy source. Flight controller plates with non-magnetic materials and vibration-damping mount geometry for stable IMU performance. Battery frames with cell pocket geometry, structural rigidity under landing shock, and quick-release retention.
DRN-006
AVIONICS & POWER / 006 — FEATURED
Flight Controller Mounting Plates
High-flatness flight controller and autopilot baseframes with IMU vibration isolation geometry for stable attitude estimation. Non-magnetic Al6061 or Al6063 — avoids interfering with integrated magnetometer compass on Pixhawk, ArduPilot, and DJI flight controller modules. Flight controller mounting face flatness ±0.003 mm — a twisted plate transfers structural vibration directly into the IMU. Vibration-damping grommet mount pockets (M3 anti-vibration ball mounts) machined to standard Ardupilot, Pixhawk, DJI, and custom 30.5×30.5 mm and 45×45 mm hole patterns. Cable routing slots and power distribution board mounting bosses integral. Stress-relieved Al6061-T651 plate — no post-machining bow. Mass verified ±3%. Hard anodize or conductive clear anodize for EMC grounding.
Al6061-T651 · Al6063 · PEEK (non-conductive)
Get Quote
DRN-007
AVIONICS & POWER / 007
Battery Mounting Frames
UAV battery pack mounting tray and retention frames for LiPo, LiHV, and custom cell pack formats. Battery seating pocket ±0.5 mm tolerance for firm retention without distorting cell pack. Quick-release latch boss or strap anchor pattern machined integral. Impact-resistant wall geometry for landing shock load. Hard anodize standard — wear resistance on frequently swapped battery rails.
Al6061 · Al7075 · Al5052Get Quote
DRN-006B
AVIONICS & POWER / 006B
ESC & Power Board Mounts
Electronic speed controller and power distribution board mounting plates and spacer stacks. Standard 30.5×30.5 mm, 20×20 mm, and 45×45 mm bolt patterns. Standoff height controlled ±0.05 mm for consistent PCB stack height. Non-magnetic and thermally conductive for ESC heat dissipation to frame.
Al6061 · Al6063 · Nylon (isolating)Get Quote
Materials: Al6061-T651 · Al6063 · Al7075 · Al5052 · PEEK · Nylon
Request All 3 →
Manufacturing Capability
Why UAV Parts Need
More Than General Precision Machining
⚖
Mass Verification — ±3% of Design Target
Every UAV structural part weighed against the design mass target. Deviation >3% triggers DFM review — not silently delivered. On a 500 g UAV, a 15 g motor mount (3%) vs 14 g target is acceptable; a 20 g mount (33% over) affects hover time and balance symmetry. We measure, not assume.
Mass ±3% toleranceDFM review if exceededEvery UAV part
🎯
Motor Perpendicularity ≤0.01 mm — Thrust Vector Control
Motor mount face perpendicularity ≤0.01 mm to arm axis — machined and verified by CMM. Even 0.3° motor tilt generates lateral thrust component requiring 5% constant control deflection. On a quad, four misaligned motors reduce effective payload and drain battery. We measure perpendicularity as a functional specification, not a cosmetic tolerance.
≤0.01mm perpendicularityCMM verifiedPer motor mount
💨
FEA-Guided Lightweighting — Stiffness Not Sacrificed
Pocket geometry designed from FEA output or our DFM-suggested lightweighting — removing material only from low-stress regions identified by load analysis. Not random pocketing that may weaken the part at an unconsidered load case. For flight-critical structural parts, we request or generate basic load case analysis before lightweighting.
FEA-guided pocketsLoad-case reviewedNot decorative
🧲
Non-Magnetic Materials for Flight Controller Mounts
Flight controller plates machined from Al6061 or Al6063 — both verified non-ferromagnetic. Steel fasteners within 20 mm of magnetometer are replaced with aluminium, nylon, or titanium. Compass heading accuracy degrades with nearby ferromagnetic material — a problem that appears in flight as heading drift and is often misdiagnosed as firmware issues.
Al alloy non-magneticNo steel near compassHeading accuracy
⚡
Vibration Isolation Pockets — IMU & Camera
Anti-vibration grommet and rubber mount pocket geometry machined to specified mount OD for correct press-fit compression and optimal vibration isolation. Pixhawk and DJI standard 30.5×30.5 mm and 45×45 mm patterns available without drawing — custom patterns to drawing in same lead time.
IMU mount pocketsGimbal isolationStandard + custom
🏋
Hard Anodize Type III — Wear on High-Cycle Parts
Motor mounts, battery rails, and arm connectors are assembled and disassembled hundreds of times. Hard anodize Type III (400–600 HV, 25–75 μm) on aluminium provides wear resistance that bare or Type II anodized aluminium cannot — preventing thread damage, mating surface wear, and galling on frequently swapped parts.
Hard anodize 600 HVMotor mountsBattery rails
Precision Specifications
Tolerances & Standards — UAV & Drone Parts
📐
Tolerances by Feature
Motor Perpendicularity
≤0.01 mm
Arm Bore Perpendicularity
≤0.01 mm
Gimbal Motor Coaxiality
≤0.005 mm
Motor Bolt Pattern
±0.005 mm
FC IMU Face Flatness
±0.003 mm
Prop. Adapter Concentric.
≤0.02 mm
General Dims
±0.05 mm
Mass Tolerance
±3% target
✈
Key Specifications
Primary Material
Al7075-T6
503 MPa · 2.81 g/cm³ · Standard drone structural alloy.
Premium (Mass-Critical)
TC4 Ti
ASTM B265 Grade 5 · 950 MPa · 4.43 g/cm³ · For cobot-mass-critical joints.
FC Plate Material
Al6061
Non-magnetic. CTE 23.6 ppm/K. T651 stress-relieved plate.
Surface Treatment
H-Anodize
Hard Anodize Type III standard. 400–600 HV on Al. Black or natural.
Min Fin Thickness
1.2mm
Gimbal bracket minimum wall thickness in Al7075.
Mass Verification
±3%
All UAV parts weighed vs design target. Deviation triggers DFM review.
Material Selection
Materials for UAV & Drone Parts
UAV material selection is dominated by stiffness-to-weight ratio — every extra gram reduces payload and hover time.
MAT / 01
Al7075-T6
503 MPa · 2.81 g/cm³ · Best Strength-to-Weight Al
Standard UAV structural alloy. Motor mounts, arm connectors, gimbal brackets, and frame skeletons. Hard anodize Type III standard. 30% stronger than 6061 at essentially same weight — no reason to use 6061 for structural drone parts.
MAT / 02
TC4 Ti-6Al-4V
ASTM B265 Grade 5 · 950 MPa · 4.43 g/cm³
Premium UAV structural material where Al7075 mass budget is still exceeded — motor mounts and arm connectors for long-endurance drones where every gram of structural weight reduces mission battery. 57% higher specific strength than Al7075.
MAT / 03
Al6061-T651
310 MPa · 2.70 g/cm³ · Non-Magnetic · T651
Non-magnetic, stress-relieved plate for flight controller and avionics mounting plates where FC IMU and compass must not be disturbed. T651 eliminates post-machining bow. Standard for all FC and autopilot mount applications.
MAT / 04
Al5052-H32
228 MPa · 2.68 g/cm³ · Best Corrosion Resistance

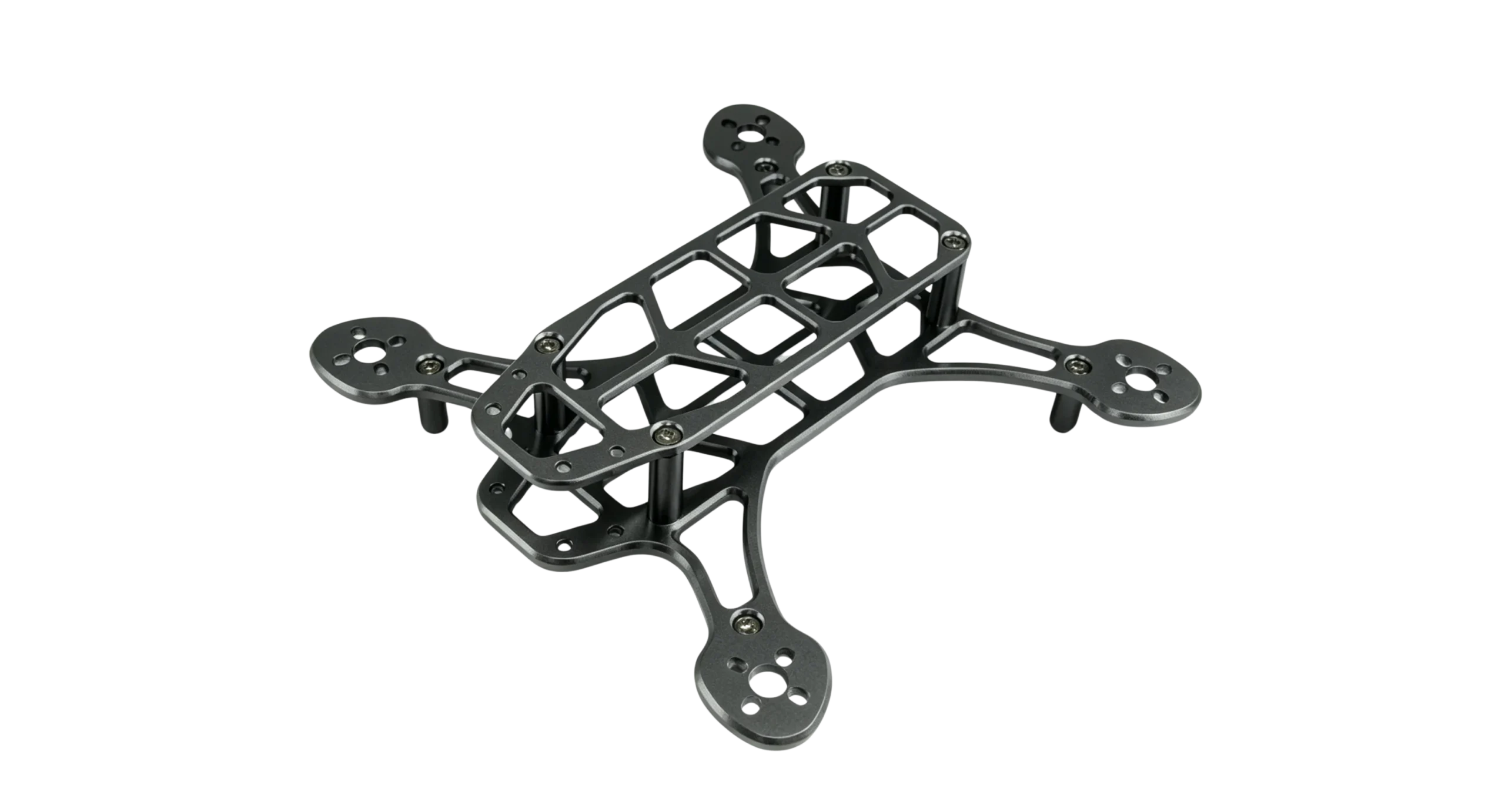

Best corrosion resistance of all aluminium alloys — used for battery mounting frames on marine, agricultural spray, and high-humidity environment UAVs where 7075 may pit. Also used for outer skin/fairing sheet panels on fixed-wing UAVs.
MAT / 05
PEEK
100 MPa · 1.32 g/cm³ · Non-Magnetic · Insulating
For electrically isolating FC mount standoffs and ESC mounting plates where galvanic isolation between the power electronics and the airframe is required. Also used as landing gear tip pad — impact-absorbing and electrically isolating. Lightest option where strength requirements allow.
Production Workflow
From Drawing to Mass-Verified UAV Part
01
DFM Review
Mass target, material, FEA lightweighting, and perpendicularity feasibility confirmed. 24hr response.
02
CNC Machining
Motor bore, arm socket, and mounting features machined in one setup. FEA pockets machined complete.
03
Mass Verification
Every UAV part weighed vs design target. Deviation >3% triggers DFM review before anodize.
04
Surface Treatment
Hard anodize Type III or black anodize. Critical bores re-measured after anodize.
05
CMM Inspection
Motor perpendicularity, arm bore coaxiality, and pattern positions verified. Report generated.
06
Delivery
Mass record, CMM report, and material cert enclosed. Anti-static bag for avionics mounts.
Applications
UAV Parts Across Every Mission Type
🚁
Commercial Multirotor
Motor mounts, arm connectors, gimbal brackets, and frame skeletons for delivery, survey, and inspection drones.
🌾
Agricultural Spray UAV
Al5052 corrosion-resistant battery frames and arm connectors for spray drone platforms operating in chemical environments.
⚡
FPV Racing & Custom Builds

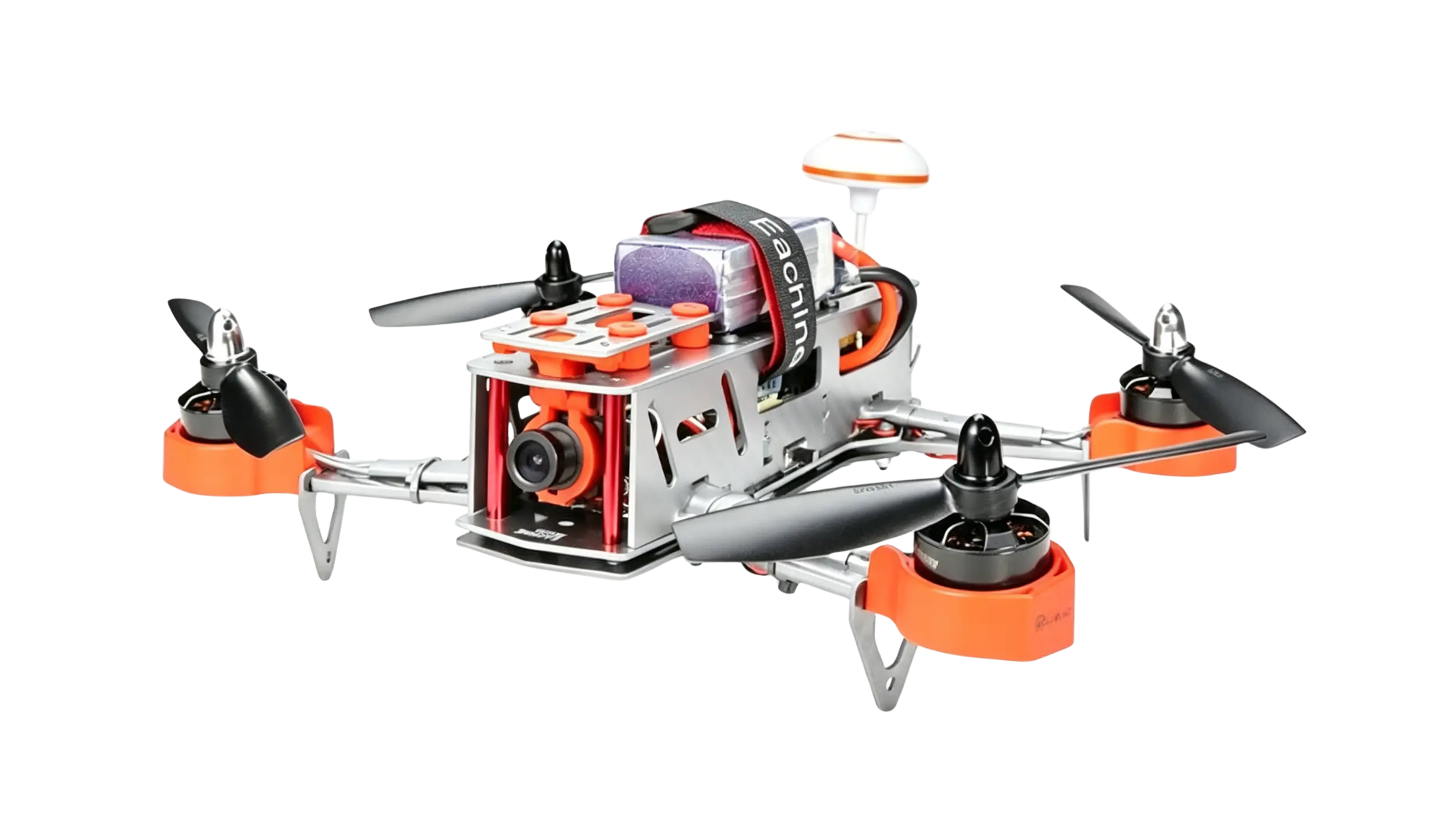

Ultra-lightweight custom motor mounts, FC plates, and skeleton frames for FPV racing and professional custom drone builds.
Our Advantage
Why Drone Engineers Specify Our Parts
±3%
Mass Verified — Every Part, Every Time
Every UAV part weighed against design mass target. Deviation >3% triggers DFM review before delivery — not discovered at integration. Mass symmetry between paired parts (motor mounts, arm connectors) verified as matched pairs to prevent hover asymmetry.
⊥
Motor Perpendicularity ≤0.01 mm — Measured, Not Assumed
Motor mount face perpendicularity to arm axis measured by CMM and reported. Not assumed from machining parameters. The specification that determines whether your UAV hovers level or trims constantly — we make it a measured deliverable, not an implied result.
FEA
FEA-Guided Lightweighting — Not Decorative Pockets
Lightweighting pockets machined from FEA output or reviewed load case analysis — not arbitrary decorative cutouts. For flight-critical structures, we verify that removed material does not degrade structural performance under identified load cases before cutting.
IMU
Non-Magnetic FC Plates — Compass Accuracy Preserved
Flight controller plates in Al6061 — non-ferromagnetic, verified. No steel hardware within magnetometer influence range. We understand that compass inaccuracy from nearby ferrous material manifests as heading drift in flight — a subtle, hard-to-diagnose problem we prevent at the manufacturing stage.
UAV & Drone Precision Parts — Motor · Arm · Gimbal · FC Plate · Battery Frame · Skeleton
Send Your Drone
Drawing for
a Quote
Upload your STEP or 2D drawing with mass target, material specification, and perpendicularity requirements. We confirm FEA lightweighting feasibility, material grade, and CMM inspection scope — full quotation within 24 hours. MOQ 1 piece.
ISO 9001:2015 · Al7075 / TC4 · Mass ±3% Verified · Motor Perp. CMM · FEA Lightweighting · Hard Anodize · MOQ 1 Piece
⚖
Mass Verified ±3% — Every UAV Part
Weighed against design target. Deviation triggers DFM review — not silently delivered. Matched pair verification available.
🎯
Motor Perpendicularity CMM Measured
≤0.01 mm motor face to arm axis — measured and reported with every motor mount. Not assumed.
💨
FEA-Guided Lightweighting — 24hr DFM
Pocket geometry reviewed against load cases before machining. Structural performance confirmed, not guessed.
🧲
Non-Magnetic FC Plates — Compass Safe
Al6061 non-ferromagnetic. No steel hardware near magnetometer. Heading accuracy preserved from the manufacturing stage.
