Product Category
Flatness ≤0.008 · O-Ring ±0.02 · Hole Pos ±0.01
CCP / 001 — 010
Surface-Ground Sealing Face
Chamber Cover Plates
Precision CNC machined and surface-ground chamber cover plates — flatness ≤ 0.008 mm, O-ring groove to ±0.02 mm, hole position ±0.01 mm, Ra 0.8 µm sealing face. For vacuum chambers, hydraulic manifold covers, pneumatic valve plates, and precision enclosures.
≤0.008mm
Flatness
±0.02mm
O-Ring Groove
±0.01mm
Hole Position
PART DWG · CCP-000 VACUUM COVER · Al 6061 · 8 BOLT M5 · O-RING AS568-150
ISO 9001 · SURFACE GROUND · CMM
Flatness ≤0.008 mm
O-Ring AS568 · ±0.02
Vacuum · Hydraulic · Pneumatic · Food · Pharma · Aero
Applications
Al 6061 · Al 7075 · SUS316L · SUS304 · Ti Gr5
Materials
48hr Quote · 6-Day Proto
Service
≤0.008mm
Sealing Face Flatness
O-ring contact grade
O-ring contact grade
±0.02mm
O-ring Groove
depth and width
depth and width
±0.01mm
Hole Position
fastener pattern
fastener pattern
6 Days
Fastest Delivery
prototype orders
prototype orders
Machining Challenges
Chamber Cover Plate Challenges
A cover plate looks simple — but the simultaneous requirements of sealing face flatness, precise O-ring groove geometry, accurate hole pattern, and part-to-part repeatability make it more demanding than it appears.
📐
Sealing Face Flatness
O-ring sealing face flatness ≤ 0.008 mm — any waviness allows the O-ring to bridge the high spots, creating a micro-gap leak path. HXC surface-grinds all sealing faces after machining the O-ring grooves.
⊕
O-Ring Groove Precision
O-ring groove width ±0.02 mm and depth ±0.02 mm — outside these limits, the O-ring is either over-compressed (extrusion / damage) or under-compressed (leakage). Verified by CMM.
🔩
Hole Pattern Accuracy
Fastener hole patterns must match the mating chamber body precisely — any misalignment causes bolt bending stress and gasket distortion. All hole positions verified by CMM.
Our Work
Request Similar Part →
Chamber Cover Plates We've Made
Real CNC machined projects — inspected and delivered.
Al 6061 · VacuumVacuum Chamber Cover Plate
KF flanges · ≤0.008mm · 20 pcs
SUS316L · HydraulicHydraulic Manifold Cover
O-ring seal · Passivated · 30 pcs
Al 7075 · PneumaticPneumatic Valve Cover Plate
16-port · Ano · 50 pcs
SUS304 · FoodFood Equipment Cover Plate
CIP · Ra 0.4µm · 15 pcs

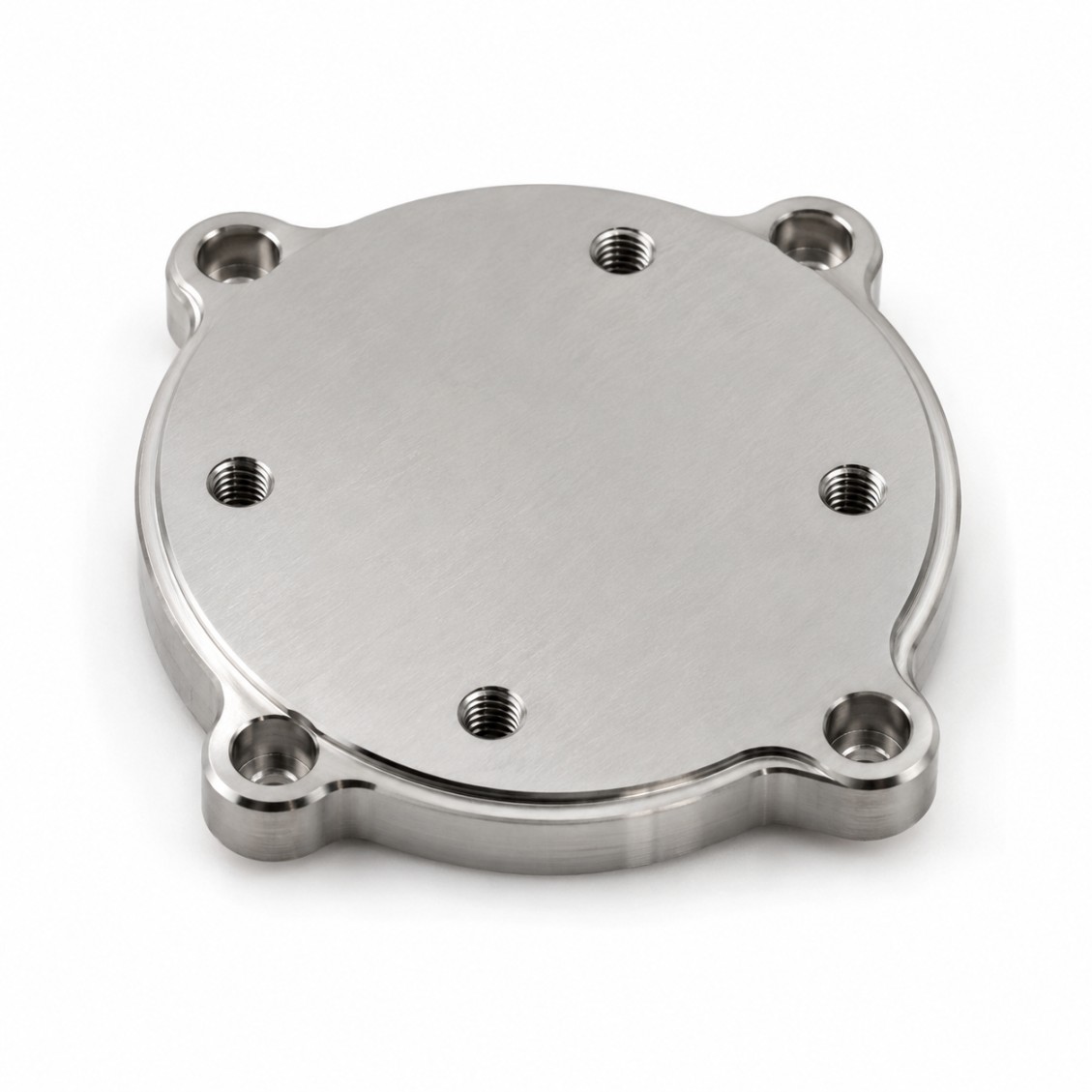

SUS316L · MedicalMedical Device Cover Plate
Passivated · 20 pcs
Al 6061 · ElectronicElectronics Enclosure Cover
EMC seal groove · 40 pcs
Ti Grade 5 · AeroAerospace Cover Plate
Grade 5 · 8 pcs
SUS316L · PharmaPharma Process Cover Plate
USP · Electropolished · 10 pcs
Capabilities & Tolerances
What We Can Deliver
Typical specifications for this product type — confirm exact requirements at enquiry.
| Sealing face flatness | ≤ 0.008 mm (surface ground) |
| O-ring groove depth | ±0.02 mm |
| O-ring groove width | ±0.02 mm |
| Hole position tolerance | ±0.01 mm |
| Sealing face Ra | 0.8 µm std, 0.4 µm available |
| Max plate size | 600 × 400 mm |
| Materials | Al 6061/7075, SUS304/316L, Ti |
| Surface treatment | Anodize, passivate, electropolish |
| Inspection | CMM all holes + O-ring grooves |
| Lead time (proto) | 6–9 days |
| Lead time (batch) | 10–16 days |
| Matched pairs | Cover + body precision matched |
How It Works
From Drawing to Finished Part
Upload your drawing — DFM review, machining, pressure/leak test if required, and shipping within agreed lead time.
01
Upload Drawing
STEP, DXF, PDF. Include sealing standard and tolerance callouts.
02
DFM & Quote
Free DFM review — groove geometry, hole alignment, sealing strategy. Quote in 48 h.
03
Machine & Surface Grind
CNC machining, surface grinding of sealing face, CMM inspection.
04
Ship Worldwide
Inspection report + test records enclosed. DHL / FedEx / sea freight.
Reviews
Trusted Cover Plate Manufacturer
★★★★★
"Sealing face flatness was within 0.005 mm across the whole plate — exceeded the 0.008 mm requirement. First-time leak test pass on every part."
MK
Martin K.
Hydraulic Systems Engineer · Germany
★★★★★
"We source matched cover + body pairs from HXC. Hole alignment is perfect every batch — saves us hours of manual fit-up."
SL
Sophie L.
Procurement Manager · France
★★★★★
"HXC's CMM reports include the groove dimensions and bolt-pattern position deviation. Documentation is the most complete of any supplier we use."
JT
James T.
Process Engineer · Taiwan
FAQ
Chamber Cover Plates — FAQ
Engineering and procurement questions answered by our team.
≤ 0.008 mm for dynamic and static O-ring face seals — this ensures the O-ring is compressed uniformly around its full circumference. For vacuum chamber cover plates: ≤ 0.005 mm. For metal knife-edge face seals: ≤ 0.003 mm with Ra ≤ 0.4 µm. All sealing face flatness verified by CMM at 25+ measurement points.
O-ring groove dimensions are machined using a dedicated groove milling tool with calibrated diameter. After machining, every groove is measured by CMM (groove width and depth at 4 angular positions). Width tolerance: ±0.02 mm; depth tolerance: ±0.02 mm. These tolerances ensure the O-ring compression percentage stays within the seal manufacturer's specification.
Yes — matched cover plate + chamber body pairs are produced where the fastener holes are drilled through both parts simultaneously to guarantee perfect bolt-pattern alignment. The O-ring groove is machined in the cover and the mating face in the body — both verified by CMM for dimensional compatibility before shipment as a matched pair.
For high-vacuum cover plates: Ra 0.4 µm, flatness ≤ 0.005 mm. For UHV ConFlat-style cover flanges: Ra 0.2 µm with knife-edge geometry verified by profilometer. Sealing face is fly-cut as the absolute final machining operation — after all other features are complete.
AS568A (US standard), BS1806 (UK/EU), and ISO 3601 for static and dynamic face seal grooves. All groove geometry is computed from the actual O-ring cross-section diameter and the required compression percentage. HXC engineers confirm groove dimensions are correct for your O-ring grade and operating pressure during DFM review.
Yes — cover plates can include integrated coolant channels, sensor ports, electrical feed-through holes, and viewing windows machined in the same setup as the sealing face. All features are referenced to the same datum as the hole pattern and O-ring groove.
Standard: 600 × 400 mm with surface grinding. For larger plates (up to 1,200 × 800 mm): precision milling to flatness ≤ 0.02 mm. For very large vacuum cover flanges (>800 mm diameter): contact us for custom machining strategy.
Prototype: 6–9 days. Batch: 10–16 days. Matched pairs (with body): add 1–2 days for matched hole drilling.
