Product Category
PTD — 001 to 024
Precision
Transmission
Components
24 product lines covering the full precision drive chain — from hobbed spur gears and ground spiral bevels to spline shafts, planetary carriers, cycloidal components, and ball screw support hardware. Every part produced to DIN, AGMA, or ISO gear quality standards with full CMM verification.
24
Product Lines
±0.002mm
Bore Tolerance
DIN 3
Max Gear Quality
0.3–20Mod
Module Range
24hr
Quote Turnaround
Spur Gears ✦
Helical Gears ✦
Internal Ring Gears ✦
Bevel Gears ✦
Spiral Bevel Gears ✦
Worm Wheels ✦
Worm Shafts ✦
Gear Shafts ✦
Spline Shafts ✦
Internal Spline Hubs ✦
Timing Pulleys ✦
Ratchets & Pawls ✦
Planet Gear Carriers ✦
Differential Housing Parts ✦
Precision Couplings ✦
Cams & Eccentric Wheels ✦
Cycloidal Parts ✦
Ball Screw Components ✦
Precision Thread Drives ✦
Spur Gears ✦
Helical Gears ✦
Internal Ring Gears ✦
Bevel Gears ✦
Spiral Bevel Gears ✦
Worm Wheels ✦
Worm Shafts ✦
Gear Shafts ✦
Spline Shafts ✦
Internal Spline Hubs ✦
Timing Pulleys ✦
Ratchets & Pawls ✦
Planet Gear Carriers ✦
Differential Housing Parts ✦
Precision Couplings ✦
Cams & Eccentric Wheels ✦
Cycloidal Parts ✦
Ball Screw Components ✦
Precision Thread Drives ✦
Full Product Range
24 Precision Transmission Product Lines
Use the category filter to browse by product type. Every product is CNC machined to drawing — no minimum order, from single prototype to high-volume production.
Showing all 24 products
Request All Products →
PTD-001
GEAR TYPE / 001
Spur Gears
Involute external spur gears from Module 0.3 to Module 20, up to Ø800 mm. CNC hobbed in soft condition, ground after heat treatment for DIN 3–5 quality. Full CMM gear measurement report — profile, helix, pitch, runout, tooth thickness. Custom bore, keyway, hub geometry. Single piece to 50,000 pcs/run.
Steel · SS · Nylon · POM · Bronze
Get Quote
PTD-002
GEAR TYPE / 002
Helical Gears
CNC hobbed helical spur gears, helix angles 5°–45°. Quieter and higher load capacity than straight spur. Left and right hand, matched pairs available. DIN 4–7 quality as standard.
Steel · Alloy · Stainless
Get Quote
PTD-003
GEAR TYPE / 003
Internal Ring Gears
Internal involute ring gears for planetary and epicyclic systems. CNC gear shaping and internal broaching. Housing bore and mounting flange machined in single setup for concentricity.
Steel · Alloy Steel
Get Quote
PTD-004 / 005
GEAR TYPE / 004 · 005
Bevel & Spiral Bevel Gears
Straight bevel gears by CNC milling and form grinding. Spiral bevel gears (Gleason / Klingelnberg style) for smooth power transmission at shaft angle changes. Matched gear sets with contact pattern verification. Right-angle and non-right-angle configurations. Lapping for smooth break-in.
20CrMnTi · 42CrMo · SS
Get Quote
PTD-006
GEAR TYPE / 006

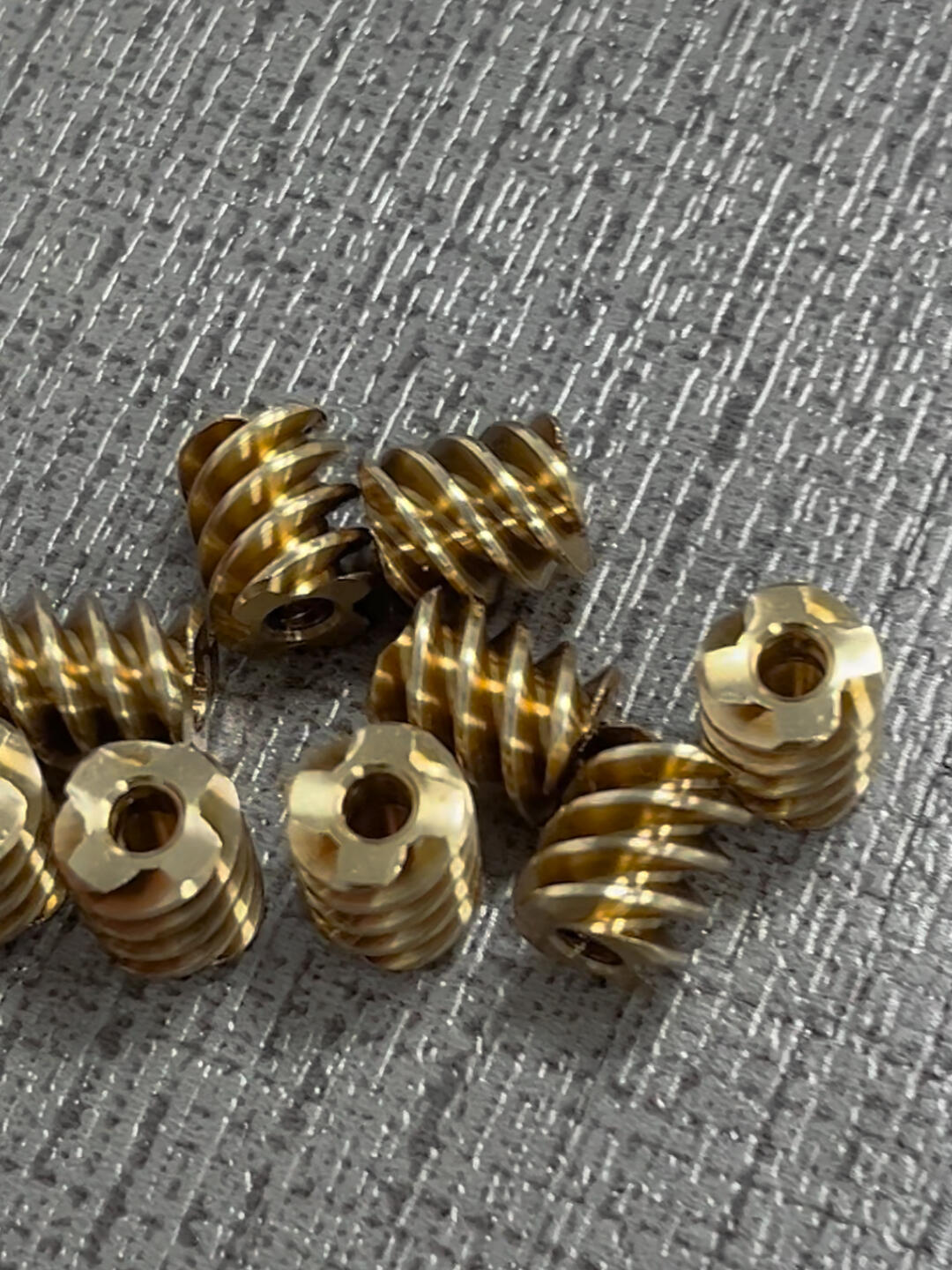

Worm Wheels
Helical worm wheels hobbed in C954 aluminum bronze, brass, and MC nylon. Module 1–10. Thread form matched to worm shaft for full tooth contact. Self-locking pairs available.
Al Bronze · Brass · MC Nylon
Get Quote
PTD-007
GEAR TYPE / 007
Worm Shafts
Single, double, and quadruple-start worm shafts. Thread ground after heat treatment for DIN 6–7 quality. Case-hardened steel standard; stainless for corrosive environments.
20CrMnTi · 40Cr · SS316
Get Quote
PTD-008
SPLINE & SHAFT / 008
Gear Shafts
Integrated gear-shaft components where gear teeth are cut directly onto the shaft blank — eliminating assembly interface and improving concentricity and torsional rigidity. CNC turning → gear hobbing → keyway → heat treatment → journal grinding. Pinion shafts, motor shafts with integral drive gear, and compact gearbox shafts.
42CrMo · 20CrMnTi · 4140 · SS
Get Quote
PTD-009
SPLINE & SHAFT / 009
Spline Shafts
Involute and parallel-key external spline shafts. SAE, DIN 5480, ISO 4156. CNC hobbed or rolled; ground after heat treatment. Clearance, transition, interference fit classes.
Steel · Alloy · Stainless · Ti
Get Quote
PTD-011
SPLINE & SHAFT / 011
Precision Transmission Sleeves
Multi-step quill shafts, stepped sleeves, and adapter sleeves with internal spline, keyway, and bearing journals. Tight coaxiality between all steps confirmed by CMM.
42CrMo · SS440C · Alloy
Get Quote
PTD-012
TIMING & RATCHET / 012
Timing Pulleys
CNC machined timing pulleys for synchronous belt drives — all major tooth profiles: MXL, XL, L, H, T2.5, T5, T10, AT5, AT10, HTD 3M/5M/8M, GT2/GT3. Aluminum standard; steel and stainless on request. Flanged and flangeless, custom bore and keyway. Zero-slip synchronization for automation and robotics.
Al6061 · Steel · SS · Nylon
Get Quote
PTD-013
TIMING & RATCHET / 013
Ratchet Wheels
External and internal ratchet wheels in steel, stainless, and engineering plastics. Tooth count and profile to drawing. Matched with pawl assemblies for complete mechanism supply.
Steel · SS · POM · Bronze
Get Quote
PTD-014
TIMING & RATCHET / 014

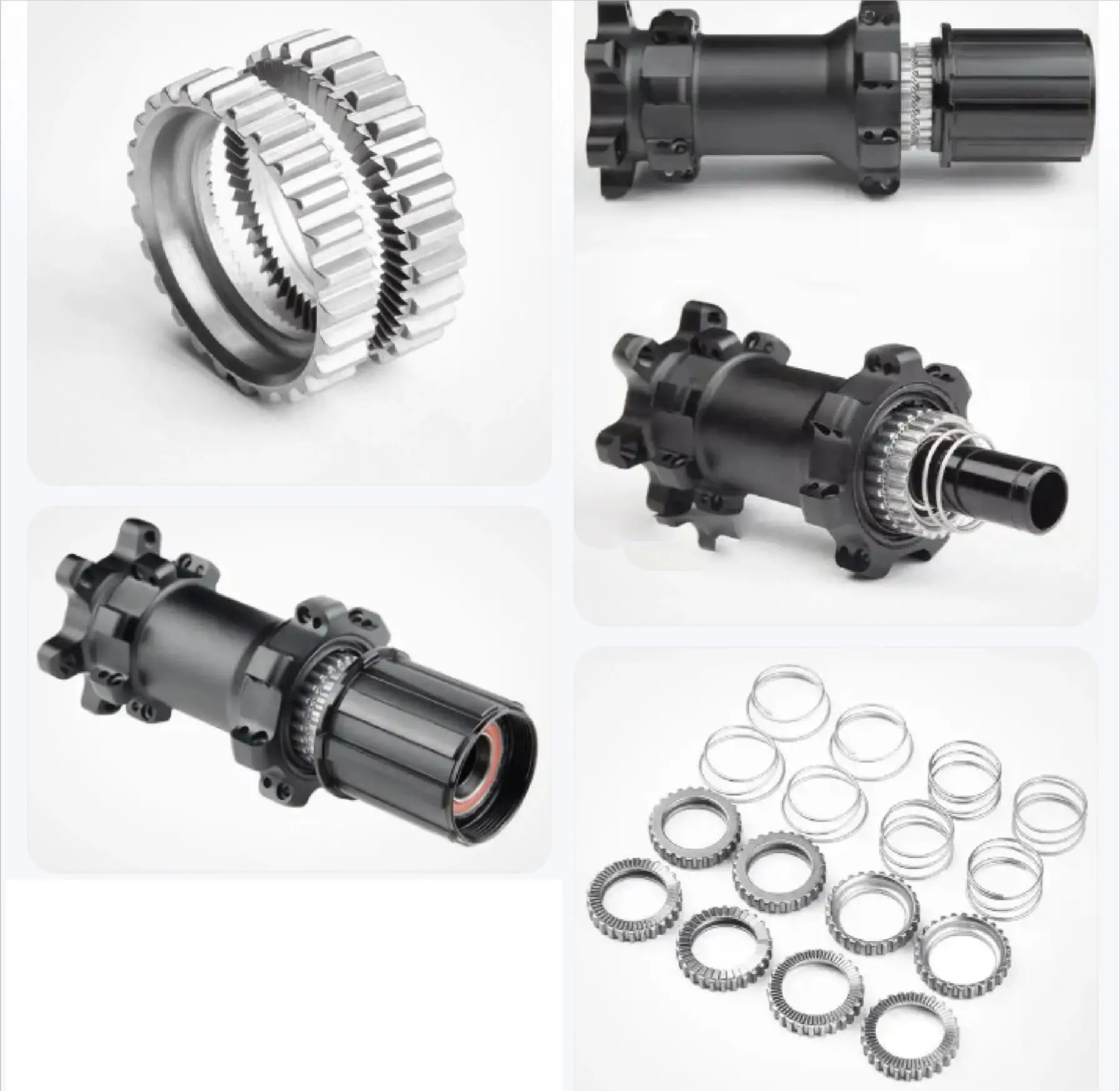

Ratchet Pawl Assemblies
CNC machined pawl bodies, spring-loaded assemblies, and pivot pins. Complete ratchet mechanism sets supplied and matched. Surface treatment to customer specification.
Steel · SS · Bronze
Get Quote
PTD-015
PLANETARY & DIFF / 015
Planet Gear Carriers
CNC machined planet gear carriers for epicyclic gearboxes. Single and double-arm spider designs. Planet pin bore positions held to ±0.005 mm for gear mesh accuracy. Heat treatment, shot peening, and full CMM verification. 3-, 4-, and 5-planet configurations all available.
42CrMo · 20CrMnTi · Alloy
Get Quote
PTD-016
PLANETARY & DIFF / 016
Differential Parts
CNC turned and milled differential components, ring gear flanges, side gear bore, and bearing saddle bores. Roundness and coaxiality verified by CMM.
GGG50 · Steel · Al Alloy
Get Quote
PTD-018
COUPLINGS & CAMS / 018
Precision Couplings
Rigid, jaw (spider), disc, bellows, and beam couplings machined from solid billet. Bore and keyway to H7 fit. Dynamically balanced for high-speed applications. Custom jaw profiles and pocket geometry. Stainless and titanium for harsh environments. Supplied as single hubs or matched sets.
Al6061 · Steel · SS · Ti
Get Quote
PTD-019
COUPLINGS & CAMS / 019
Cams
Profile cams, barrel cams, and face cams machined by 3-axis and 5-axis CNC. Hardened tool steel for long wear life. Cam profile accuracy to ±0.01 mm verified by CMM.
D2 · H13 · 42CrMo · SS
Get Quote
PTD-020
COUPLINGS & CAMS / 020
Eccentric Wheels
Precision eccentric discs with eccentricity controlled to ±0.003 mm. Complete eccentric shaft assemblies with journals, flanges, and bores machined in one setup for concentricity. Used in pressing, feeding, and indexing mechanisms.
42CrMo · Alloy Steel
Get Quote
PTD-021 / 022
LEAD SCREW & THREAD / 021 · 022

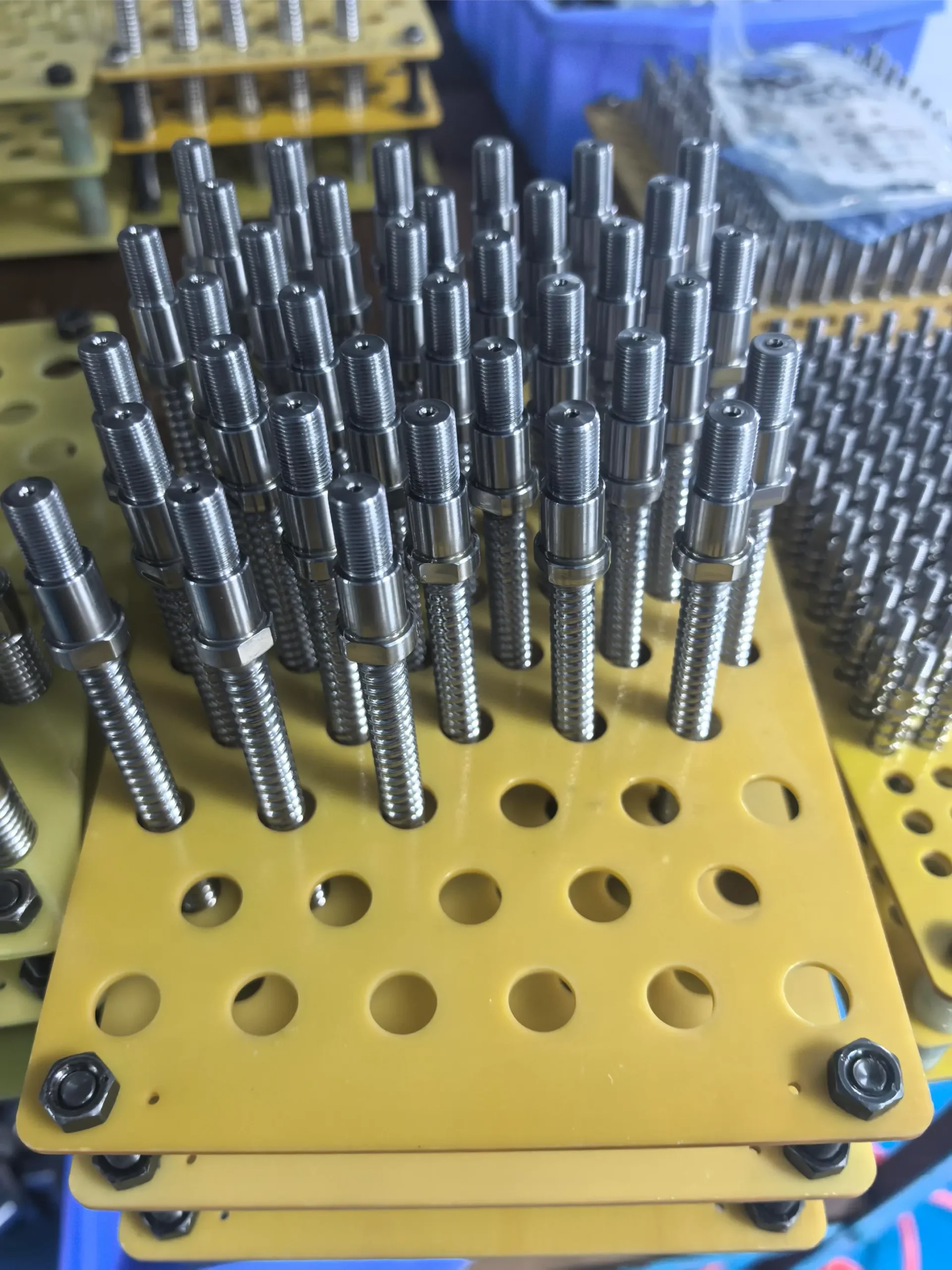

Lead Drive & Ball Screw Components
Custom lead screw shafts, ball screw support blocks, nut flanges, and end machining for Hiwin, THK, and Bosch Rexroth ball screw systems. Journal ends ground to P4 bearing fit. Lock nuts, support bearing housings, and coupling adapters supplied as complete matched sets. Thread ground on lead screws to DIN 69051.
C45 · 42CrMo · SS303
Get Quote
PTD-024
LEAD SCREW & THREAD / 024
Linear Drive Guides
Custom lead nuts, anti-backlash nut assemblies, and precision thread guide components for CNC linear stages and adjusting screws. Thread class 5H/5g to 4H/4g available.
Bronze · SS · POM
Get Quote
Manufacturing Capability
Dedicated Gear & Transmission Equipment
Scroll to explore our full gear machining capability — dedicated equipment for every product type, not adapted general machining centers.
CAP / 01
⚙
CNC Gear Hobbing
6-axis CNC hobbers for external spur, helical, and worm gears. Module 0.3–20. Dry hobbing with TiAlN carbide hobs.
6-Axis CNC Hobbers
Module 0.3 to 20
External spur, helical, worm
Dry hobbing standard
CAP / 02
🔩
Gear Shaping
CNC gear shapers for internal ring gears, cluster gears, and gears adjacent to shoulders. DIN 4–7 quality range.
Internal ring gears
Cluster gear shaping
Shoulder-adjacent gears
DIN 4–7 achievable
CAP / 03
✦
Post-HT Gear Grinding
CNC form gear grinding after heat treatment. DIN 3–6 quality. Ra 0.4 μm tooth flank finish. Eliminates heat-treat distortion.
DIN 3 achievable
Ra 0.4 μm flank finish
Profile and thread grinding
Continuous generating
CAP / 04
◆
5-Axis Bevel Cutting
5-axis CNC for straight and spiral bevel gears. Gleason and Klingelnberg profiles. Contact pattern verification on matched sets.
Gleason / Klingelnberg
5-axis machining center
Contact pattern check
Gear lapping available
CAP / 05
◈
Spline Hobbing & Broaching
External splines by CNC hobbing or cold rolling. Internal splines by broaching, gear shaping, or wire EDM. All three measurement methods.
Cold-roll splines
Broaching (production)
Wire EDM (complex)
Span, pin, CMM gauge
CAP / 06
🎯
Gear CMM Metrology
Gear CMM with Gear Pro software. 16-parameter measurement per DIN/AGMA/ISO. Report issued on every precision gear order.
16-parameter report
Profile, helix, pitch, runout
DIN / AGMA / ISO
Pre & post-HT measurement
CAP / 07
🔥
Coordinated Heat Treatment
Carburizing, nitriding, induction hardening, and through hardening — coordinated with certified heat treatment partner. Full certification.
Carburizing 0.3–2.5mm case
Nitriding 0.1–0.5mm case
Induction hardening
Hardness certification
Material & Tolerance Data
Materials, Tolerances & Heat Treatment Options
⚙
Materials for Transmission Components
| 20CrMnTi | Case-carburized gears, planet carriers | 60–62 HRC |
| 42CrMo / 4140 | Gear shafts, worm shafts, lead screws | 54–58 HRC |
| 18CrNiMo7-6 | Heavy-duty aerospace / industrial gears | 62 HRC |
| SS303 / 304 / 316 | Corrosion-resistant couplings, splines | Passivated |
| SS17-4PH / 440C | High-strength stainless gears, cams | 48–54 HRC |
| Ti-6Al-4V (TC4) | Lightweight aerospace gear shafts | 36 HRC |
| Al6061 / 7075 | Timing pulleys, light couplings | Anodized |
| C954 Al Bronze | Worm wheels, slide bushings | As-Machined |
| MC Nylon / POM-H | Nylon gears, timing wheels, quiet drives | Dry Running |
🎯
Achievable Tolerances by Feature Type
Bore / OD
±0.002 mm
Gear Quality
DIN 3–4
Runout (TIR)
0.003 mm
Tooth Flank Ra
Ra 0.4 μm
Spline DIN 5480
Class 5–6
Pin Bore Position
±0.005 mm
Lead Screw Pitch
±5 μm/300mm
Cam Profile
±0.010 mm
Production Workflow
From Drawing to Qualified Gear — 6 Steps
01
DFM Review & Quoting
Drawing reviewed for gear geometry, tolerance feasibility, and material selection. DFM feedback and full quotation within 24 hours. Pre-confirmed achievable DIN quality grade.
02
Blank Machining
CNC turning of gear blank — OD, bore, face, hub — with grinding stock allowance confirmed for post-heat-treatment operations.
03
Gear Cutting (Soft)
CNC hobbing, shaping, or 5-axis bevel cutting. Soft-gear CMM inspection before heat treatment — catch profile errors early, not after grinding expensive ground gears.
04
Heat Treatment
Carburizing, nitriding, or through hardening. Hardness certified. Pre-grind measurement confirms grinding stock still exists on all flanks after distortion.
05
Gear Grinding
Post-HT grinding to DIN 3–6 quality. Tooth flank Ra 0.4 μm. Bore and journal ground in same setup for concentricity. Thread grinding for worm shafts and lead screws.
06
CMM Inspection & Delivery
16-parameter gear measurement report. Full dimensional CMM. Material certificate. VCI rust-protection packaging. Documents shipped with parts.
Industries Served
Transmission Parts for Every Drive System
Aerospace
Gear Shafts · Bevel Sets · Splines
Robotics
Cycloidal · Timing · Couplings
Automotive
Differential · Ring Gears
Machine Tools
Spindle Gears · Lead Screws
Marine
Helical · Worm Drives
Medical
Miniature Gears · Ti Shafts
Quality System
Every Gear Measured & Certified
📋
First Article Inspection on Every New Part Number
Full CMM report, 16-parameter gear measurement, material certificate, and hardness results issued before production release. No production part ships without FAI approval.
🔬
Measure Soft → Heat Treat → Grind
Every gear is measured after hobbing (soft) and again after heat treatment (hard). Detects distortion before grinding — preventing grind burn on under-stock gears.
🔗
Material Traceability — Heat Number to Finished Gear
Mill cert → heat treatment batch → hardness → CMM — all four records maintained with full traceability. Required and delivered on all aerospace and automotive orders.
⚙
Matched Gear Set Contact Pattern Verification
Bevel gear sets, worm and worm wheel pairs: blue-compound contact pattern checked on inspection stand. Photograph included in delivery documentation.
📋
ISO 9001:2015
Full quality management system certification
⚙
DIN 3962
Gear accuracy classification standard
🎯
AGMA 2000
American gear quality standard
📐
ISO 1328
Cylindrical gear accuracy standard
◈
DIN 5480
Involute spline standard
✅
CMM Report
16-parameter gear measurement on all precision orders
Our Advantage
Why Engineers Specify Our Transmission Parts
01
Dedicated Gear Equipment
6-axis CNC hobbers, CNC gear shapers, 5-axis bevel centers, and post-HT gear grinders — not adapted general machining centers. The right machine for every gear type means better quality at every step.
02
Full Gear CMM Metrology
16-parameter gear measurement report — profile, helix, pitch, runout, tooth thickness — on every precision gear order. Not just a dimensional check: actual gear quality classification per DIN/AGMA/ISO delivered with every shipment.
03
Coordinated Heat Treatment
Measure soft → heat treat → measure again → grind. We never skip the pre-grind measurement. This protects expensive grinding operations and ensures grinding stock is available on every tooth flank without exception.
04
Prototype to Series — Same System
Single-piece prototype gears to 100,000-piece annual production runs on the same machines, same quality system. No supplier change from prototype to production — the process that qualifies the part also runs the production series.
Get a Quote
Send Your Drawing.
Get a Quote.
Every enquiry includes a DFM review — tolerance feasibility, material confirmation, and process approach confirmed before production starts. MOQ 1 piece.
24hr
Quote Response
MOQ 1
Prototypes OK
ISO
9001:2015
📐
DFM Review on Every Enquiry
Tolerance feasibility, fixturing strategy, and material confirmation. Specific, actionable feedback — not generic pushback.
🎯
First Article Inspection — Standard
FAI report on every new run. Material certs and surface treatment certs included with every shipment.
🔄
Same Process: Prototype to Production
Process plan from your prototype applies to production batches. No re-qualification when you scale.
⚙
3 / 4 / 5-Axis CNC + Turning
Complex structural parts, shafts, housings, and transmission components. Metals and engineering plastics.
ISO 9001:2015
3/4/5-Axis Milling
CNC Turning
CMM Inspection
Global Delivery
